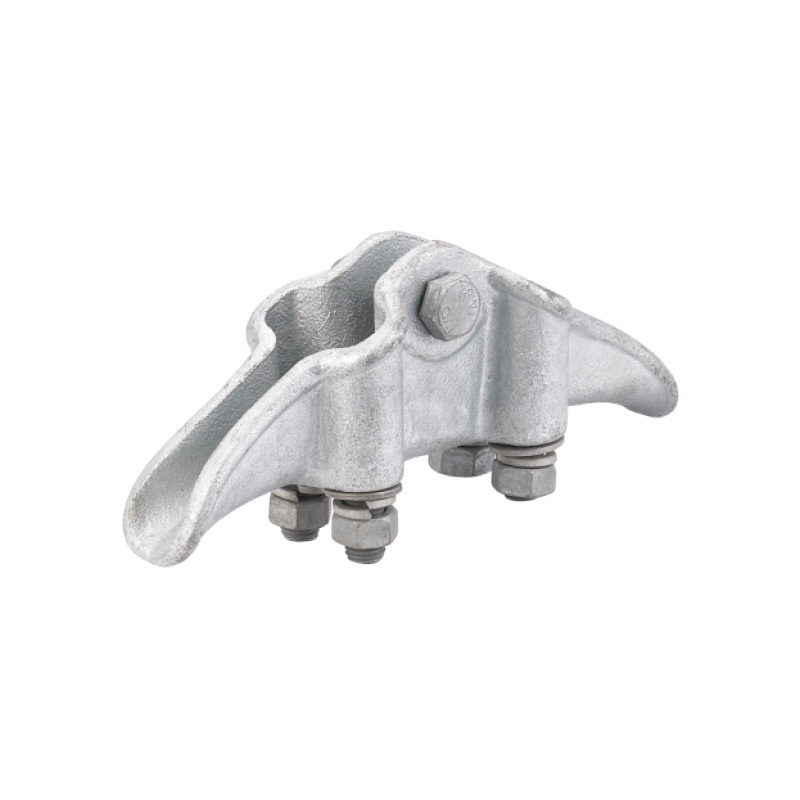

• XGT type suspension clamp

  • XGT type suspension clamp

    The XGT suspension clamp is the core hardware of overhead transmission lines, which is used to suspend and fix the conductor/ground wire on the insulator string of the straight tower, bear vertical loads, and allow the conductor to slide slightly to release thermal expansion and contraction stress, protecting the stability of the conductor and the line. The following is a detailed explanation:

    core purpose

    1. Mechanical suspension and fixation: By fastening the structure with U-bolts or pressure blocks, the wire/ground wire is stably suspended below the insulator string, bearing vertical loads such as the weight of the wire, icing, and wind loads, maintaining the spatial position of the wire, and preventing detachment or excessive displacement.

    2. Stress buffering and wire protection: The rubber gasket between the clamp body and the wire can buffer wind vibration and avoid wire wear; Allow the wire to slide slightly with temperature changes, release the internal stress caused by thermal expansion and contraction, and reduce the risk of wire breakage.

    3. Adapt to different wire diameters: Models are classified according to the outer diameter of the wire (such as XGT-1 adapting to 5.0-7.0mm, XGT-6 adapting to 34.0-45.0mm, etc.), and are compatible with commonly used wires such as steel core aluminum stranded wire and aluminum stranded wire to meet the requirements of different voltage level lines.

    4. Adapt to complex working conditions: Made of malleable cast iron or aluminum alloy material, treated with hot-dip galvanizing and other anti-corrosion treatments, it has strong weather resistance and is suitable for coastal, chemical, high-altitude and other corrosive and windy environments, ensuring long-term reliable operation of the line.

    5. Auxiliary special installation: Jumpers can be fixed on tension and angle towers, and transposed conductors can be supported on transposed towers. Combined with connecting structural components (hanging plates, hanging rings, etc.), reliable connections with insulators and towers can be achieved.

    • 0.00
      0.00
产品详情

The XGT suspension clamp is the core hardware of overhead transmission lines, which is used to suspend and fix the conductor/ground wire on the insulator string of the straight tower, bear vertical loads, and allow the conductor to slide slightly to release thermal expansion and contraction stress, protecting the stability of the conductor and the line. The following is a detailed explanation:

core purpose

1. Mechanical suspension and fixation: By fastening the structure with U-bolts or pressure blocks, the wire/ground wire is stably suspended below the insulator string, bearing vertical loads such as the weight of the wire, icing, and wind loads, maintaining the spatial position of the wire, and preventing detachment or excessive displacement.

2. Stress buffering and wire protection: The rubber gasket between the clamp body and the wire can buffer wind vibration and avoid wire wear; Allow the wire to slide slightly with temperature changes, release the internal stress caused by thermal expansion and contraction, and reduce the risk of wire breakage.

3. Adapt to different wire diameters: Models are classified according to the outer diameter of the wire (such as XGT-1 adapting to 5.0-7.0mm, XGT-6 adapting to 34.0-45.0mm, etc.), and are compatible with commonly used wires such as steel core aluminum stranded wire and aluminum stranded wire to meet the requirements of different voltage level lines.

4. Adapt to complex working conditions: Made of malleable cast iron or aluminum alloy material, treated with hot-dip galvanizing and other anti-corrosion treatments, it has strong weather resistance and is suitable for coastal, chemical, high-altitude and other corrosive and windy environments, ensuring long-term reliable operation of the line.

5. Auxiliary special installation: Jumpers can be fixed on tension and angle towers, and transposed conductors can be supported on transposed towers. Combined with connecting structural components (hanging plates, hanging rings, etc.), reliable connections with insulators and towers can be achieved.
