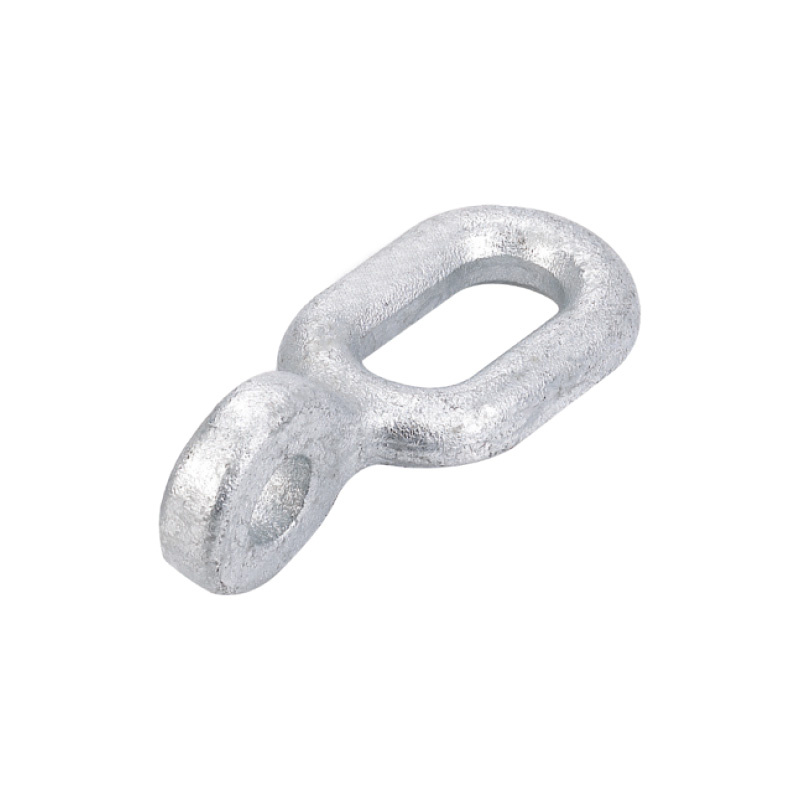

ZH type right angle hanging ring is a commonly used connecting fixture in transmission line fittings, mainly used to change the connection direction and adjust the installation angle, so that the insulator string or fitting string can be connected in the 90 ° direction on the tower cross arm.

Its product usage can be summarized as:

1. Changing the connection direction is used to turn the insulator string from horizontal to vertical or from vertical to horizontal, achieving a 90 ° angle connection.

2. The connection between the cross arm and the insulator string is a common hanging point fitting used in suspension and tension strings to connect the insulator string to the side or bottom of the cross arm.

3. The transition connection of the hardware string can be used in conjunction with U-shaped hanging rings, ball head hanging plates, bowl head hanging plates, extension rings, etc., to form a complete hardware connection system.

4. Adjusting the installation position and angle is suitable for situations where space is limited or the hanging point position needs to be adjusted to maintain a reasonable stress state of the insulator string.

5. Standard fittings for transmission lines are widely used in transmission lines with voltage levels such as 110kV, 220kV, and 500kV.

6. Improve the flexibility and reliability of metal fittings with simple structure, high strength, and reliable connection, which can effectively transmit wire tension and load.
