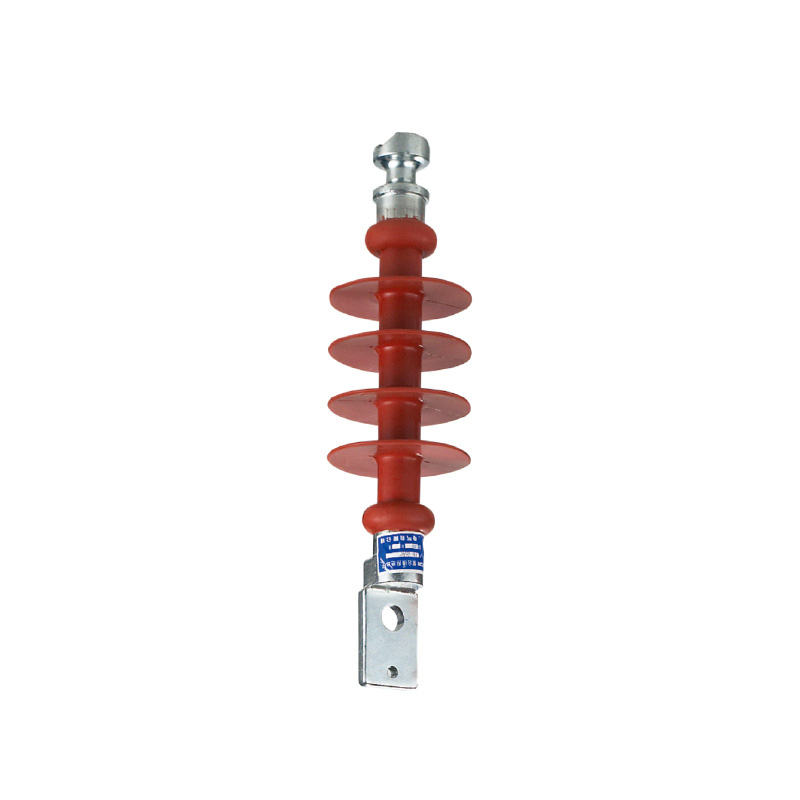

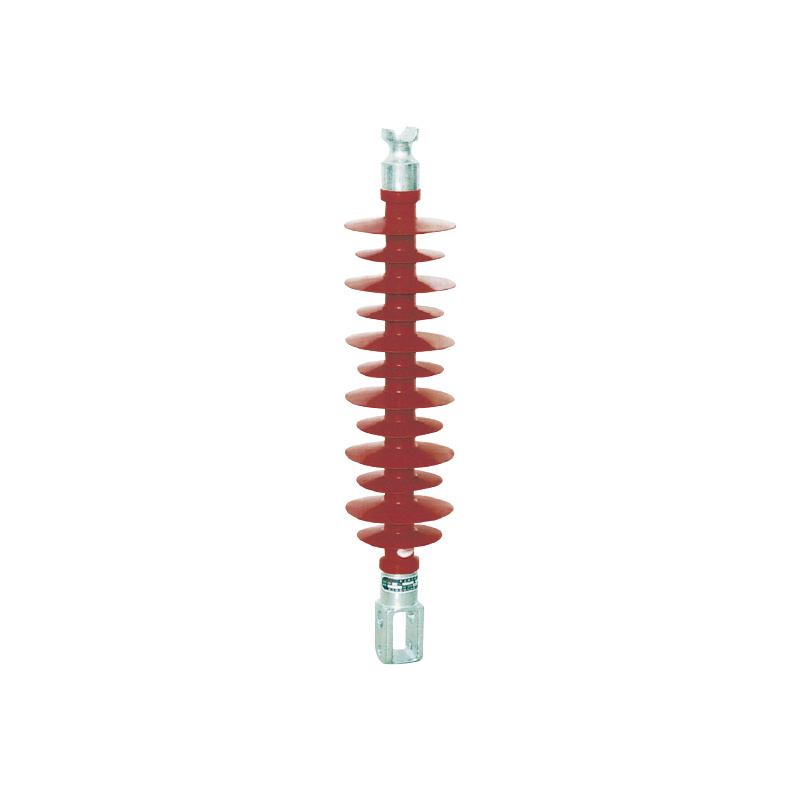

Composite cross arm insulators are key components of power transmission and distribution lines, with the core purpose of supporting conductors, providing insulation protection, and adapting to various complex scenarios to ensure safe and stable operation of the lines. Here is a detailed introduction:

core purpose

1. Insulation isolation: By using insulation materials such as silicone rubber, electrical isolation is maintained between the wire and the tower, ground, and different phase wires to prevent short circuits, arc discharges, pollution flashes, rain flashes, ice flashes, and other faults, ensuring the safety of power transmission.

2. Mechanical support: With high-strength core rods and metal fittings, it can stably suspend and support wires and ground wires, withstand line tension, wind loads, icing loads, and vibrations, maintain the horizontal and vertical positions of wires, and ensure the stability of the line structure.

3. Adapt to special scenarios

Urban network renovation and compact lines: can reduce tower height, save corridor space, reduce engineering costs, and adapt to narrow urban line corridors.

Heavy pollution areas: Silicone rubber umbrella skirts have strong hydrophobicity and mobility, outstanding resistance to pollution flashes, suitable for chemical areas, coastal areas, industrial dust and other easily polluted environments, and require no manual cleaning, with low maintenance costs.

Extreme climate zone: tolerant to temperatures ranging from -60 ℃ to+200 ℃, with good wind resistance, earthquake resistance, and ice cover resistance, suitable for high-altitude, strong wind, earthquake prone, and cold regions.

Large span and emergency repair construction: Lightweight (1/5-1/9 of the same grade of porcelain insulators), easy to transport and install, suitable for mountainous construction, accident repair, and large span lines to reduce the number of towers.

4. Improve the reliability and economy of the transmission line: Compared with traditional porcelain insulators, it is resistant to brittle fracture, shock, aging, reduces the frequency of line faults and maintenance, has a long maintenance cycle without zero value testing, and has lower lifecycle costs. At the same time, it can be interchanged with porcelain insulators, which is conducive to the upgrading and renovation of the transmission line.
