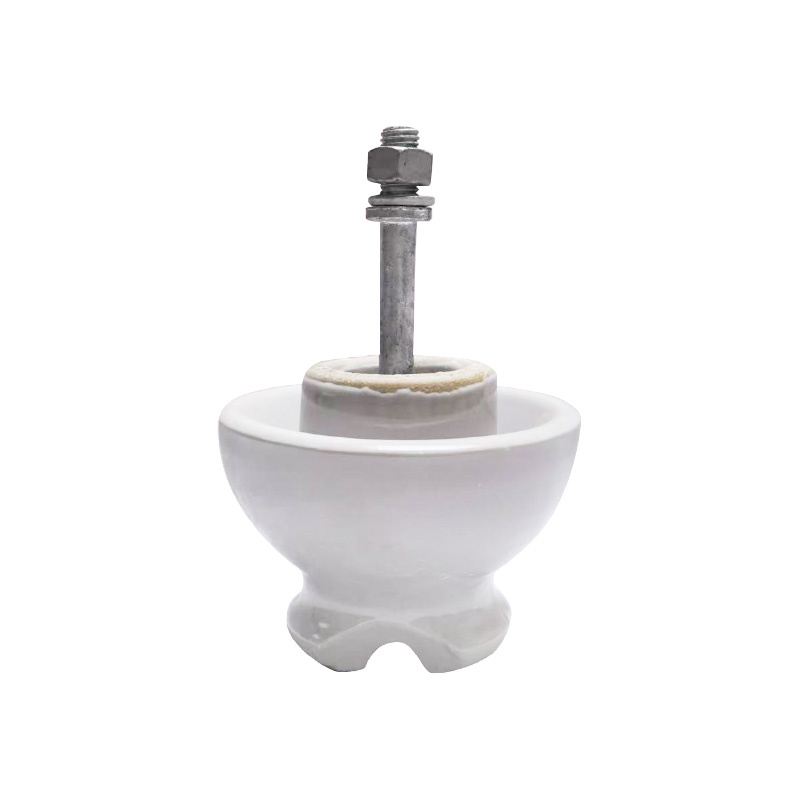

Needle type porcelain insulator, also commonly known as "needle type porcelain bottle", is an insulation and support component mainly used in medium and low voltage overhead power lines. Its design shape resembles a needle, hence its name. Its main uses can be summarized into the following two core aspects:

1. Support and fix wires

Hanging wire: This is the most basic mechanical function of needle type porcelain insulators. It firmly fixes the wire to the insulator through the top cable tray or special structure, bearing various mechanical loads such as the weight of the wire itself, wind, ice and snow loads.

Connection fittings: Metal accessories at both ends of insulators (usually referred to as steel caps and steel feet) are used to connect with the cross arms and wire fixing fittings of the line, forming a complete support system.

2. Implement electrical insulation

Isolation voltage: This is its most basic electrical function. Needle type porcelain insulators can effectively isolate high voltage between live wires and grounded metal towers, prevent accidental leakage of current to the ground, and ensure the safety of line maintenance personnel and the surrounding environment.

Increase creepage distance: Ceramic surfaces are usually coated with a layer of glaze, and some are even designed with specific shapes. This is not only aesthetically pleasing, but more importantly, it can increase the "creepage distance" - the length of the path that current needs to travel from the conductor through the insulator surface to the tower. This can effectively improve the anti pollution flashover and anti moisture flashover capabilities of insulators.

In summary, needle type porcelain insulators are essential key components in medium and low voltage overhead transmission lines. They serve as a sturdy "small bracket" to support the wires and a reliable "insulation wall" to ensure the safety of the lines.

Additional applicable scenarios:

According to relevant information, pin type porcelain insulators are commonly used in power lines with voltage levels ranging from 6kV to 35kV and below, especially suitable for straight poles with small wire cross-sections and corner poles with low stress.
